Ground improvement with the Vibroflot

The Vibroflot is a slim vibrator which is vertically lowered into the soil, using water pressure and gravity. The Vibroflot is used for compaction and to stabilize loose grainy soil by vibrating. By extending the vibrator with follower tubes, greater depths can be reached.

A Vibroflot can be used for ground improvement in the following ways:

• Compaction: soil is added from the top of the vibrolans
• By adding other material e.g. gravel.
• By creating stone columns. Gravel is added from the bottom of the vibrolans. This increases the bearing capacity of the soil. Foundation settlements, seismic subsidence and liquefaction are being prevented.



The vibrating movement of the Vibroflot is generated by the hydraulic powered eccenter in the nose of the Vibroflot. By pressing water from the bottom and the sides of the Vibroflot, it can be lowered to the desired depth easily.

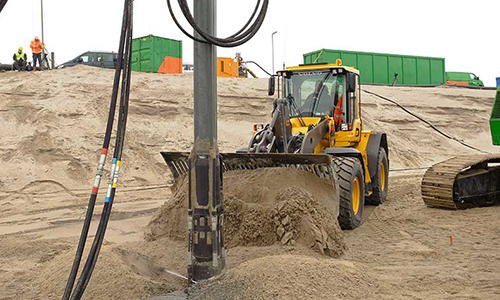

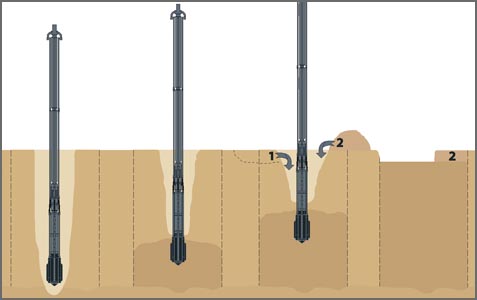

Because the compacted soil becomes more compact, a funnel arises at the surface. By adding soil during the retracting movement – the vibrovlot is started and stopped at predetermined times - a compact and stable soil arises.

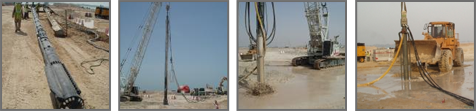

A Vibroflot is suspended free hanging from a crawler crane or leader guided in a rig. It can also be driven in and by an excavator. Real-time data from a single or tandem set up is displayed on a monitor and can be downloaded at any time to support job reports.





ICE provides two models that are more or less identical in terms of dimensions. The difference is determined by the eccentric moment. Both models can be assembled in a modular way. Various accessories are available for the different applications. For more information about this specific product, we would like to refer you to the sales department.





Deep vibratory techniques using Vibroflots are generally known as vibro compaction and vibro replacement. The techniques are used for densifying granular soils, as well as for realizing stone columns.

A vibroflot is a slim, hydraulically driven vibratory needle. In combination with various accessories, the Vibroflot can be built to use with high pressure water jetting, or for replacement with a hopper system. A Vibroflot can be extended with so-called followers to be able to work to the desired depth.

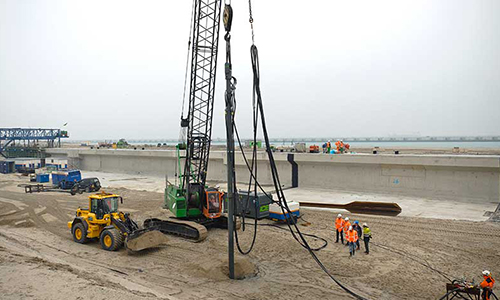

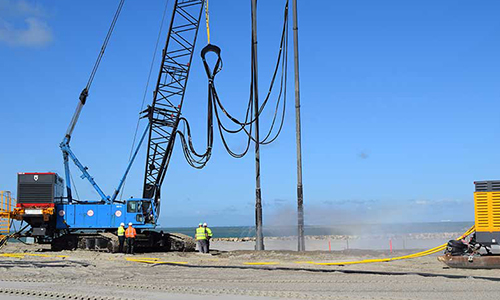

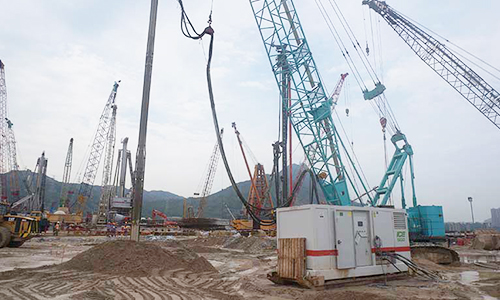

Of course a Vibroflot is used in soft or granular soil, usually sand. The Vibroflots are normally suspended from a standard crawler crane. Real-time data from a single or tandem setup is displayed on the monitor and can be downloaded at any time to support service intervals and job reports.





An known application is the accelerated preparation of reclaimed land by compacting into predetermined patterns. As a result, the ground can be developed immediately. Examples include the Maasvlakte (Rotterdam, Holland) and the expansion of the airport in Singapore.





Another application is to increase load bearing and stability by replacement, for example stone collumns under motorways.

Stone collumns are also made in earthquake-sensitive areas in a pattern around a foundation profile to absorb earthquakes and possibly rising groundwater.





Vibro compaction

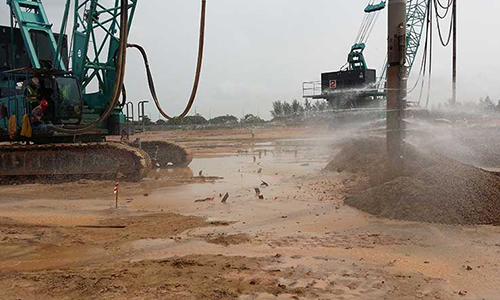

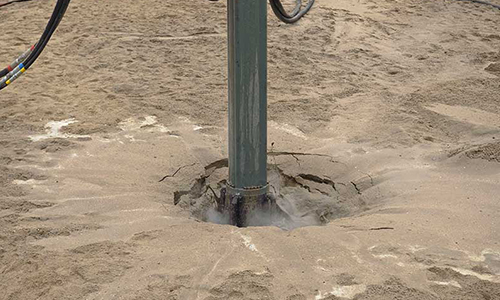

Vibro compaction is a deep compaction technique for densifying granular soils with less than 10 – 15% silt present. The process is done 'in situ', using a Vibroflot. Water under high pressure is jetted sideways and downwards from the Vibroflot to assist the penetration process. Under the influence of simultaneous vibration and saturation, loose sand and/or gravel particles are repacked into a denser state and lateral confining pressure within the soil mass is increased. As an option, additional extension tubes can be added to allow the Vibroflot to do its work to depths in excess of our standard 5 meter (16 feet) below surface level up to depths of more than 25meter (82 feet).





Replacement:

Vibro replacement is a technique used in soils that do not respond well to vibration alone (too adhesive, more than 15% silt). The improvement is achieved by creating columns of either crushed stone or concrete (reinforced).



The process enables increased load bearing, reduces settlement and even improves the shear resistance of the ground being treated. The process is technically proven and cost effective.





Vibro replacement involves two primary construction methods: Wet Top Feed and Dry Bottom Feed.

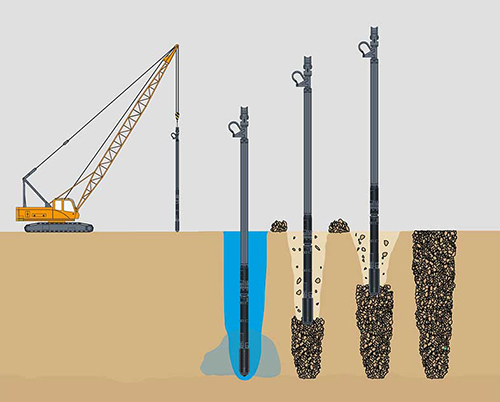

Wet Top Feed Method:



In the Wet Top Feed Method water and/or air under high pressure is jetted from the nose of the Vibroflot to assist with the penetration.



It removes soft material and helps to stabilize the space created by the Vibroflot, to ensure that the backfill material reaches the nose cone of the Vibroflot.

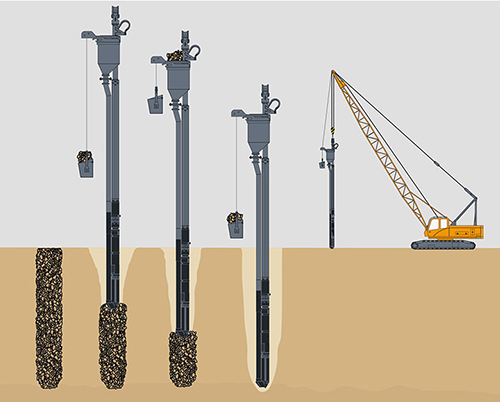

Dry Bottom Feed Method:

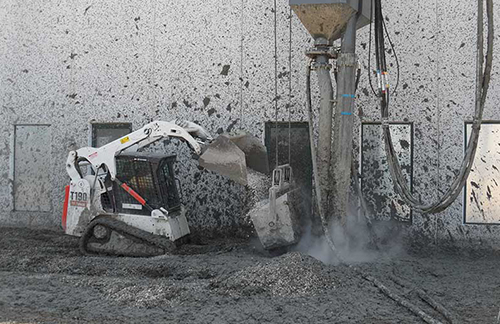

In this method a hopper system and a supply tube support the Vibroflot.



This hopper system and supply tube feed the stone backfill directly to the nose cone of the Vibroflot. As bottom feed, vibro replacement is a completely dry operation. The Vibroflot remains in the ground during the construction process.
